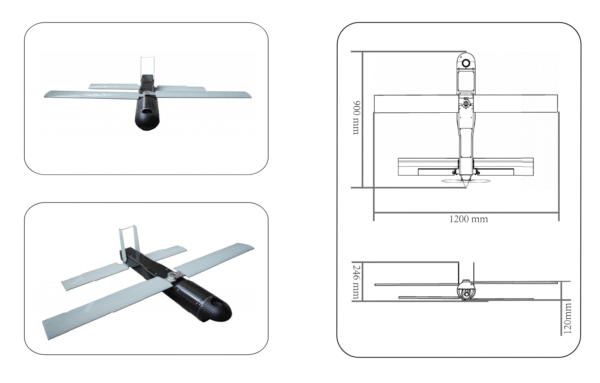

ZH-Knife-06 Catapult-launched UAV

Category:
Item Specification
Wingspan 1,200 mm
Length 900 mm
Height 246 mm
Aircraft weight 4 kg
Max take-off weight (MTOW) 5.5 kg
Max payload 1.5 kg
Service ceiling 5,000 m
Maximum speed 180 km/h
Cruising speed 90–110 km/h
Endurance 45 min @ 1 kg payload
Rate of climb ≤ 3.5 m/s
Rate of descent ≤ 1.5 m/s
Wind resistance Level 5
Ingress protection rating IP54
Operating temperature −20 °C to +50 °C
Packed dimensions Fuselage 1130 × 210 × 200 mm;
Launch tube 1800 × 400 × 350 mm
