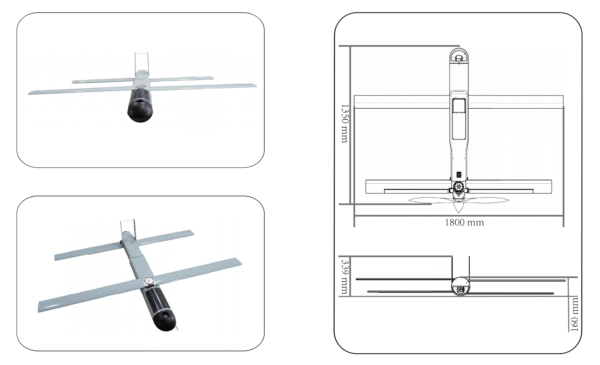

ZH-Knife-15 Catapult-launched UAV
| Item | Specification |
|---|---|
| Wingspan | 1800 mm |
| Length | 1350 mm |
| Height | 339 mm |
| Aircraft weight | 9.5 kg |
| MTOW | 15.5 kg |
| Max payload | 6 kg |
| Practical ceiling | 5000 m |
| Endurance | 40 min @ 6 kg |
| Maximum speed | 160 km/h |
| Cruising speed | 140–160 km/h |
| Rate of climb | ≤ 3.5 m/s |
| Rate of descent | ≤ 1.5 m/s |
| Ingress protection rating | IP54 |
| Wind resistance | Level 5 |
| Operating temperature | -20 °C to +50 °C |
| Folded / disassembled dimensions | Fuselage 1640 × 250 × 230 mm; Launch tube 1920 × 575 × 360 mm |
