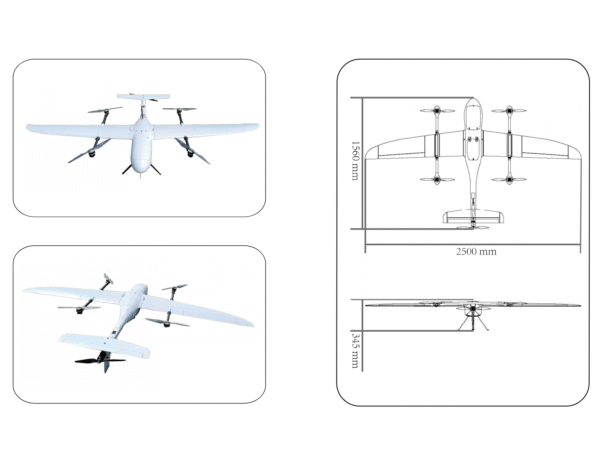

ZH-VF13E Electric Hybrid VTOL UAV
| Performance Parameters | |
|---|---|
| Item | Specification |
| Wingspan | 2500 mm |
| Length | 1560 mm |
| Height | 345 mm |
| Frame weight | 3.9 kg |
| Maximum take-off weight (MTOW) | 13.5 kg |
| Maximum payload | 2 kg |
| Service ceiling (practical) | 5000 m |
| Maximum speed | 100 km/h |
| Cruising speed | 75–90 km/h |
| Rate of climb | ≤ 3.5 m/s |
| Rate of descent | ≤ 1.5 m/s |
| Endurance (1 kg payload) | ≈ 210 min @ 1 kg |
| Wind resistance | Level 5 (vertical takeoff/landing phase) / Level 6 (cruise phase) |
| Ingress protection rating | IP54 |
| Operating temperature | -10 °C ～ +45 °C |
| Folded / packed dimensions | 1260 × 486 × 405 mm |
