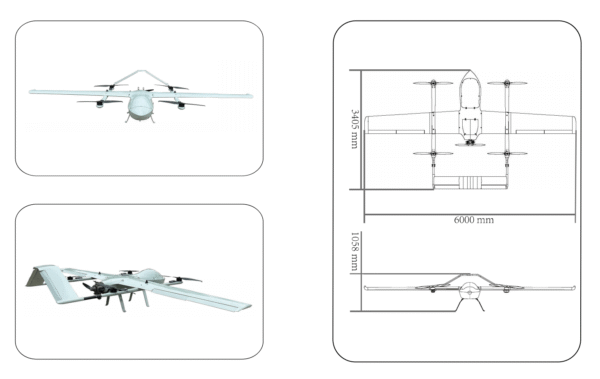

ZH-VF150P Fuel-powered hybrid VTOL UAV
| Parameter | Value |
|---|---|
| Wingspan | 6000 mm |
| Height | 1058 mm |
| Maximum Take-off Weight (MTOW) | 150 kg |
| Practical Ceiling | 6000 m |
| Maximum Speed | 160 km/h |
| Rate of Climb | ≤ 3.5 m/s |
| Ingress Protection Rating | IP54 |
| Operating Temperature | -10 °C – +45 °C |
| Length | 3405 mm |
| Fuel Tank | 48 L |
| Max Payload | 50 kg |
| Endurance | 300 min @ 30 kg |
| Cruising Speed | 110–150 km/h |
| Rate of Descent | ≤ 1.5 m/s |
| Wind Resistance | Level 5 (Vertical Takeoff/Landing Phase) / Level 6 (Cruise Phase) |
| Folded/Disassembled Dimensions | 2440 × 1290 × 1230 mm |
