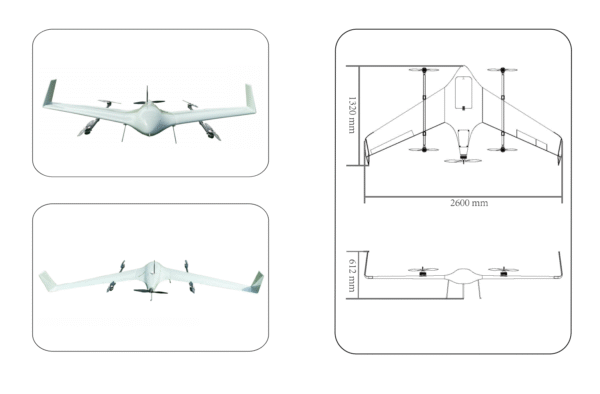

ZH-VF16E Electric Hybrid VTOL UAV
| Performance Parameters | |
|---|---|
| Wingspan | 2600 mm |
| Height | 612 mm |
| Maximum Take-off Weight (MTOW) | 15 kg |
| Practical Ceiling | 5000 m |
| Maximum Speed | 130 km/h |
| Rate of Climb | ≤ 3.5 m/s |
| Ingress Protection Rating | IP54 |
| Operating Temperature | -10 °C ~ +45 °C |
| Length | 1320 mm |
| Frame Weight | 5 kg |
| Max Payload | 3 kg |
| Endurance | ≈ 180 min @ 1 kg |
| Cruising Speed | 70 – 120 km/h |
| Rate of Descent | ≤ 1.5 m/s |
| Wind Resistance | Level 5 (Vertical take-off/landing) / Level 6 (Cruise phase) |
| Folded / Disassembled Dimensions | 1420 × 450 × 580 mm |
