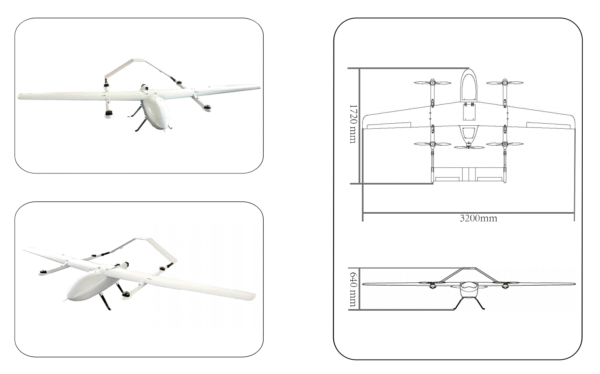

ZH-VF20E Electric Hybrid VTOL UAV
| Parameter | Value |
|---|---|
| Wingspan | 3200 mm |
| Height | 640 mm |
| Maximum Take-off Weight (MTOW) | 20 kg |
| Practical Ceiling | 5000 m |
| Maximum Speed | 110 km/h |
| Rate of Climb | ≤ 3.5 m/s |
| Ingress Protection Rating | IP54 |
| Operating Temperature | -10 °C – +45 °C |
| Length | 1720 mm |
| Frame Weight | 7.2 kg |
| Max Payload | 5 kg |
| Endurance | 240 min @ 2 kg |
| Cruising Speed | 80–100 km/h |
| Rate of Descent | ≤ 1.5 m/s |
| Wind Resistance | Level 5 (vertical takeoff/landing) / Level 6 (cruise) |
| Folded / Disassembled Dimensions | 1420 × 660 × 510 mm |
