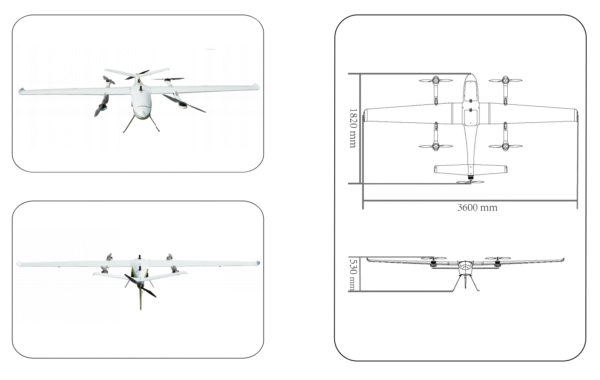

ZH-VF23E Electric Hybrid VTOL UAV
| Parameter | Value |
|---|---|
| Wingspan | 3600 mm |
| Length | 1820 mm |
| Height | 530 mm |
| Frame Weight | 7.2 kg |
| Maximum Take-off Weight (MTOW) | 32 kg |
| Maximum Payload | 10 kg |
| Practical Ceiling | 5000 m |
| Maximum Flight Speed | 120 km/h |
| Cruising Speed | 85–95 km/h |
| Endurance | 260 min @ 2.5 kg payload |
| Rate of Climb | ≤ 3.5 m/s |
| Rate of Descent | ≤ 1.5 m/s |
| Wind Resistance | Level 5 (vertical takeoff/landing phase) / Level 6 (cruise phase) |
| Ingress Protection Rating | IP54 |
| Operating Temperature | −10 °C to +45 °C |
| Folded / Disassembled Dimensions | 1880 × 530 × 565 mm |
