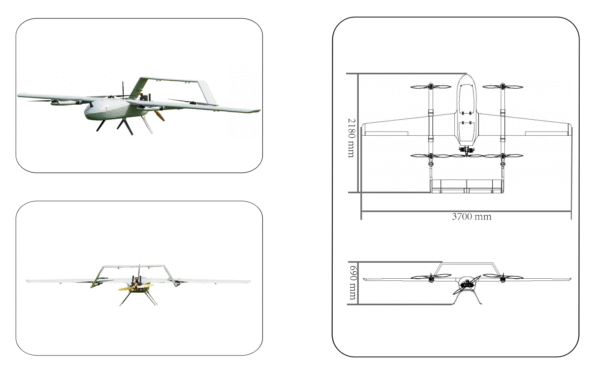

ZH-VF40P Fuel-powered hybrid VTOL UAV
| Parameter | Value |
|---|---|
| Wingspan | 3700 mm |
| Height | 690 mm |
| Maximum take-off weight (MTOW) | 40 kg |
| Practical ceiling altitude | 6000 m |
| Maximum speed | 130 km/h |
| Rate of climb | ≤ 3.5 m/s |
| Ingress protection rating | IP54 |
| Operating temperature | -10 ℃ to +45 ℃ |
| Length | 2180 mm |
| Fuel tank capacity | 14 L |
| Maximum payload | 5 kg |
| Endurance (2 kg payload) | 12 h @ 2 kg |
| Cruising speed | 100–120 km/h |
| Rate of descent | ≤ 1.5 m/s |
| Wind resistance | Level 5 (vertical takeoff/landing phase) / Level 6 (cruise phase) |
| Folded / disassembled dimensions | 1740 × 740 × 760 mm |
