ZH-VF50P Fuel-powered hybrid VTOL UAV

Category:

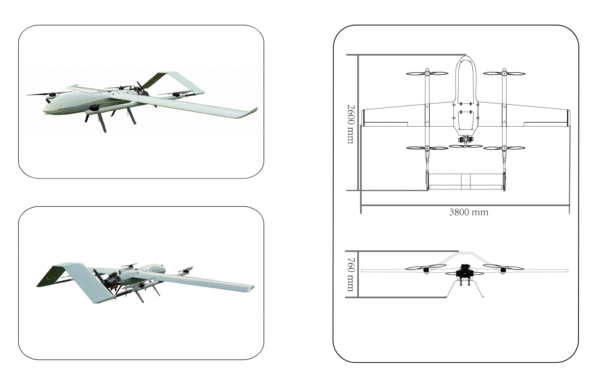

Wingspan 3800 mm
Height 760 mm
Maximum Take-off Weight (MTOW) 50 kg
Service Ceiling (Practical Altitude) 6000 m
Maximum Speed 130 km/h
Rate of Climb ≤ 3.5 m/s
Ingress Protection Rating IP54
Operating Temperature -10 °C to +45 °C
Length 2600 mm
Fuel Tank Capacity 18 L
Maximum Payload 15 kg
Endurance 240 min @ 10 kg payload
Cruising Speed 100–120 km/h
Rate of Descent ≤ 1.5 m/s
Wind Resistance Level 5 (vertical takeoff/landing), Level 6 (cruise)
Folded/Disassembled Dimensions 1600 × 700 × 600 mm
