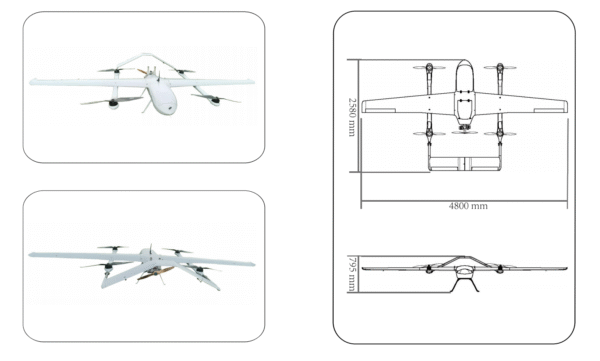

ZH-VF80P Fuel-powered hybrid VTOL UAV
| Item | Specification |
|---|---|
| Wingspan | 4800 mm |
| Height | 795 mm |
| Maximum Take-off Weight (MTOW) | 90 kg |
| Practical Ceiling | 6000 m |
| Maximum Speed | 150 km/h |
| Rate of Climb | ≤ 3.5 m/s |
| Ingress Protection Rating | IP54 |
| Operating Temperature | -10 °C to +45 °C |
| Length | 2580 mm |
| Fuel Tank Capacity | 25 L |
| Maximum Payload | 30 kg (including liquid) |
| Endurance | ≈ 360 min @ 20 kg payload |
| Cruising Speed | 100–120 km/h |
| Rate of Descent | ≤ 1.5 m/s |
| Wind Resistance | Level 5 (Vertical Takeoff/Landing Phase); Level 6 (Cruise Phase) |
| Crate Size (Folded/Disassembled) | 1950 × 920 × 710 mm |
