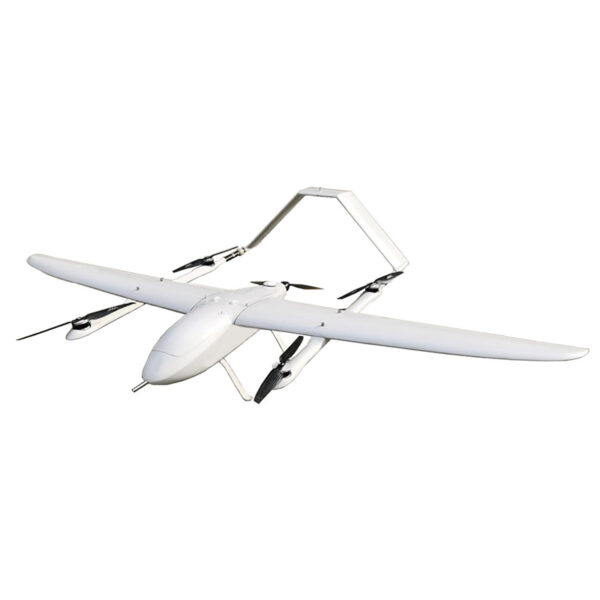

ZH-VT12E Electric Hybrid VTOL UAV
| Performance Parameters | |
|---|---|
| Item | Specification |

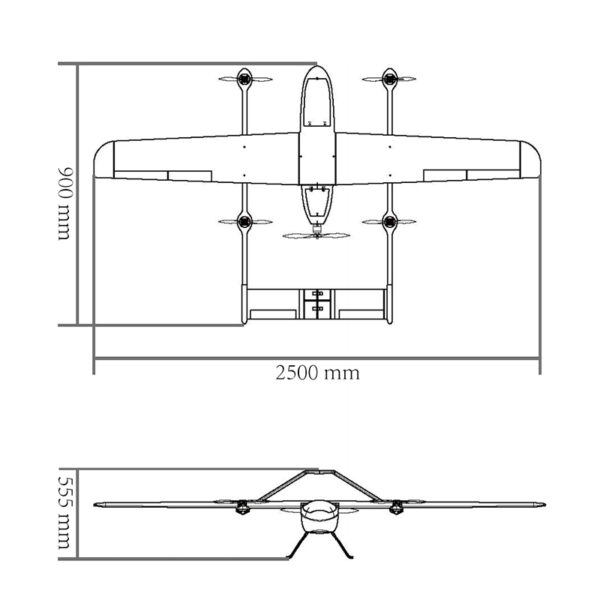

| Wingspan | 2500 mm |
| Length | 900 mm |
| Height | 555 mm |
| Frame weight | 4.1 kg |
| Maximum take-off weight (MTOW) | 12 kg |
| Maximum payload | 2 kg |
| Service ceiling (practical) | 5000 m |
| Maximum speed | 110 km/h |
| Cruising speed | 70–100 km/h |
| Rate of climb | ≤ 3.5 m/s |
| Rate of descent | ≤ 1.5 m/s |
| Endurance (1 kg payload) | ≈ 150 min @ 1 kg |
| Wind resistance | Level 5 (vertical takeoff/landing phase) / Level 6 (cruise phase) |
| Ingress protection rating | IP54 |
| Operating temperature | -10 °C ～ +45 °C |
| Folded / packed dimensions | 1420 × 455 × 400 mm |
