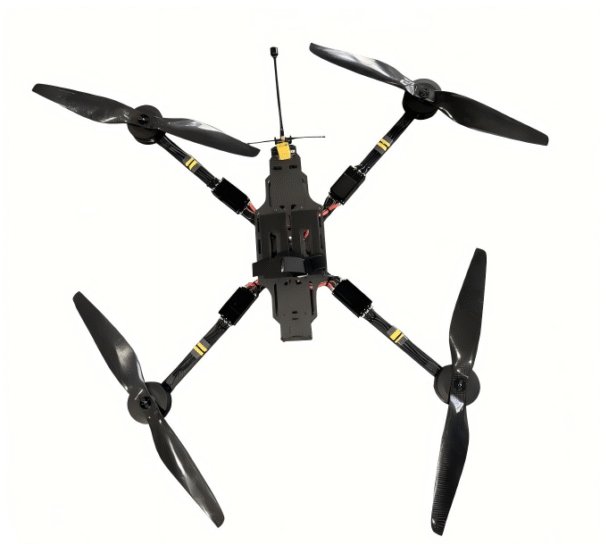

| FPV Drone Specifications |
| Item |
Specification |
| Frame |
18-inch frame |
| Frame type |
X type |
| Flight controller (FC) |
F405 V3 |
| ESC (electronic speed controller) |
160A ESC × 4, independent ESCs |
| VTX (image transmission) |
5.8G, 3W (optional) |
| Antenna |
5.8G, 151 mm, 3.5 dBi |
| Camera |
1500TVL, 165° wide-angle (optional) |
| Motors |
6210 210KV motors |
| Propellers (blades) |
1855 |
| Receiver |
ELRS 915 MHz |
| Drone weight (single unit) |
3,000 g |
| Maximum flight speed |
130 km/h |
| Rated payload |
12 kg |
| Maximum payload |
13 kg |
| Maximum take-off weight |
19 kg |
| Recommended battery |
12S 30000mAh, XT90 plug |
| Flight time (rated load, 30000mAh) |
≈ 12 min |
